Variables

What are Variables?

Variables serve as dynamic placeholders within a strategy to store numeric values that can be shared across conditions and updated during execution. They allow you to move beyond static logic and build strategies that "remember" previous states, such as an entry price or a trade count.

---

Core Concepts

What Variables Do

Feature	Description
Named Reusability	Declare a value once (e.g., Tradecount) and reference it in multiple nodes.
State Management	Track counts or previous price levels to coordinate Entry/Re-entry logic.
Strategy-Wide Scope	Unlike indicators (which are data-dependent), variables exist across all legs and conditions.
Code Export Ready	Maps directly to Python properties for advanced customization.

Where to Use Variables (Examples)

• Condition Comparisons: Max loss/profit targets.
• Action Configurations: Target/Stop Loss values.
• Indicator Comparisons: Compare indicator values against thresholds.
• Trade Limits: Control maximum entries per day.

---

How to Create a Variable

Step 1: Open the Builder

Navigate to the dashboard builder page and open an existing strategy or create a new one.

Step 2: Add a Variable

In the left sidebar, locate the Variables section and click the + icon.

Step 3: Configure Properties

• Name: A unique identifier (e.g., riskPct, maxLoss, tradeCount).
• Value: Enter a numeric literal (e.g., 3, 0.5, 100, -3000).

Step 4: Add to Strategy

Click the + button. The variable is now ready to be referenced in conditions and actions.

---

Strategy Implementation Examples

Example 1: Counting Trades (Daily Limit)

Objective: Limit the number of trades taken in a day (e.g., max 3 trades).

Variables

Name	Value	Purpose
maxTrades	4	Daily trade limit
tradeCount	0	Running counter

Logic Setup

Entry Condition:

• Here we are checking if tradecount is less than max trades and if the RSI is greater than 60.

tradeCount < maxTrades AND RSI > RSIvalue

Action:

• We are adding a leg to the strategy.
• Here we are incrementing the tradecount by 1.

tradeCount = tradeCount + 1

---

Example 2: Spot-Based Straddle Shifting

Objective: Set the Spot Price at 09:30 AM, then shift the straddle every time the spot moves 100 points until the end of the day.

Variables

Name	Value	Purpose
spotBase	0	Reference point for the next shift

Logic Setup

Entry Condition:

Position == [] AND Time >= 09:30:00

Entry Action:

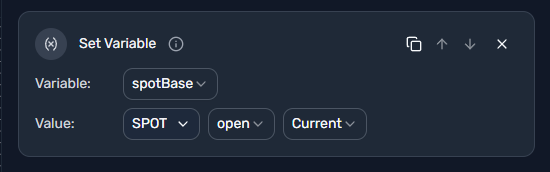

1. Set Variable: spotBase = SPOT.open.current
2. Add Leg: Sell ATM CE & PE

Exit Condition (OR):

• Time >= 15:15:00
• ABS(SPOT.open.current - spotBase) >= 100

Note: Because the Entry Condition checks for an empty position, the strategy re-enters and resets the spotBase automatically after every 100-point exit (shift).

---

Example 3: Combined Premium SL on VWAP Entry

Objective: Enter a straddle when Combined Premium is below VWAP. Set SL at 5% of the entry premium or if premium crosses back above VWAP.

Variables

Name	Value	Purpose
entryPremium	0	Captured at the moment of entry

Logic Setup

Indicator: Apply VWAP to the Combined Premium data point.

Entry Condition:

Position == [] AND Time >= 09:30:00 AND Combined Premium < Combined VWAP

Entry Action:

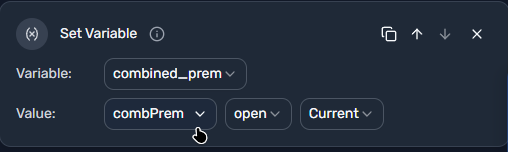

1. Set Variable: entryPremium = Combined Premium.open.current
2. Add Legs: Sell ATM CE & PE

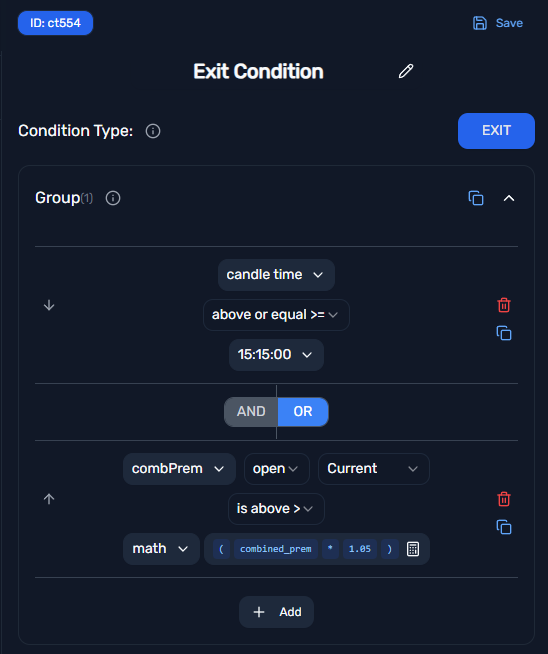

Exit Condition (OR):

• Time >= 15:15:00
• Combined Premium > (entryPremium * 1.05) (5% SL)

---

Best Practices

1. Use Semantic Names

✅ maxIntradayLoss, scalpingLot, vwapDeviationLimit
❌ var1, x, temp

2. Action Order Matters

Always place the Set Variable block as the first step in an Entry Action. This ensures your Stop Loss or Shift logic is measured against the exact entry fill price.

3. Centralize Tunable Parameters

Any value you expect to tweak (max loss, max profit, target/SL, etc.) should be a variable. Avoid hard-coding literals in multiple nodes.

4. Use Absolute Math

When measuring price distance, use the ABS (Absolute Value) function to detect moves in both bullish and bearish directions.

5. Plan for Code Export

If you plan to modify the generated Python code, align variable names with how you would reference them in code (e.g., maxProfitVar, niftyEntryPrice).

---

Common Patterns

Pattern	Variables Needed	Use Case
Trade Limiting	maxTrades, tradeCount	Control daily exposure
Price Anchoring	entryPrice, spotBase	Track entry point for SL/Target
Premium Tracking	entryPremium	Option premium-based exits
Profit/Loss Targets	maxProfit, maxLoss	Simple P&L-based exits

---

Quick Reference

Variable Creation:
1. Go to Variables section in sidebar
2. Click + icon
3. Set Name (unique identifier)
4. Set Value (numeric only)
5. Click Add

Usage in Conditions:
- Compare indicators/data against variable values
- Use in mathematical expressions
- Combine with AND/OR logic

Usage in Actions:
- Set Variable to update values during execution
- Reference in Target/SL configurations
